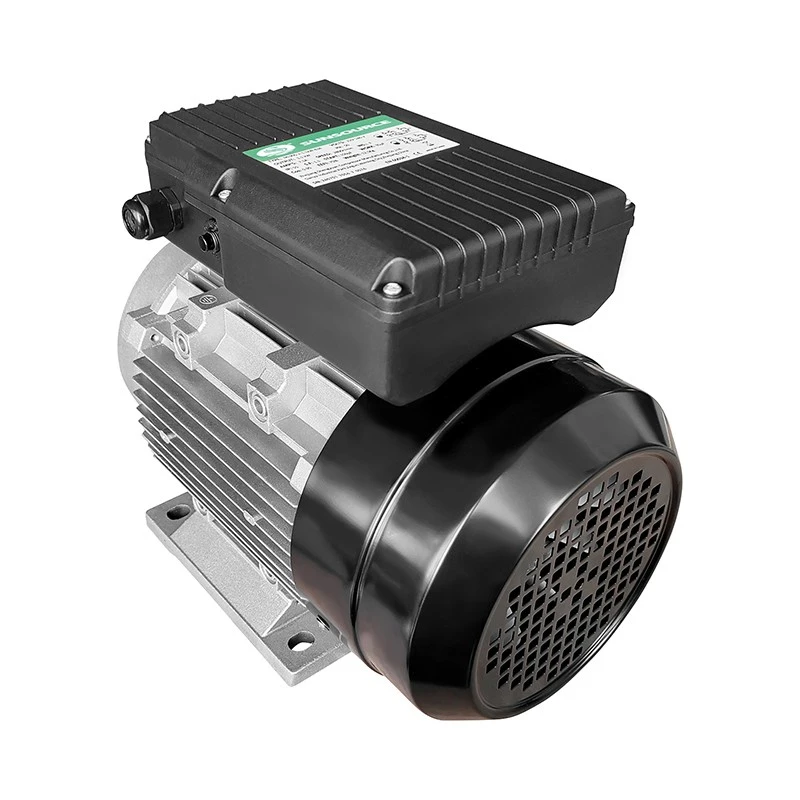

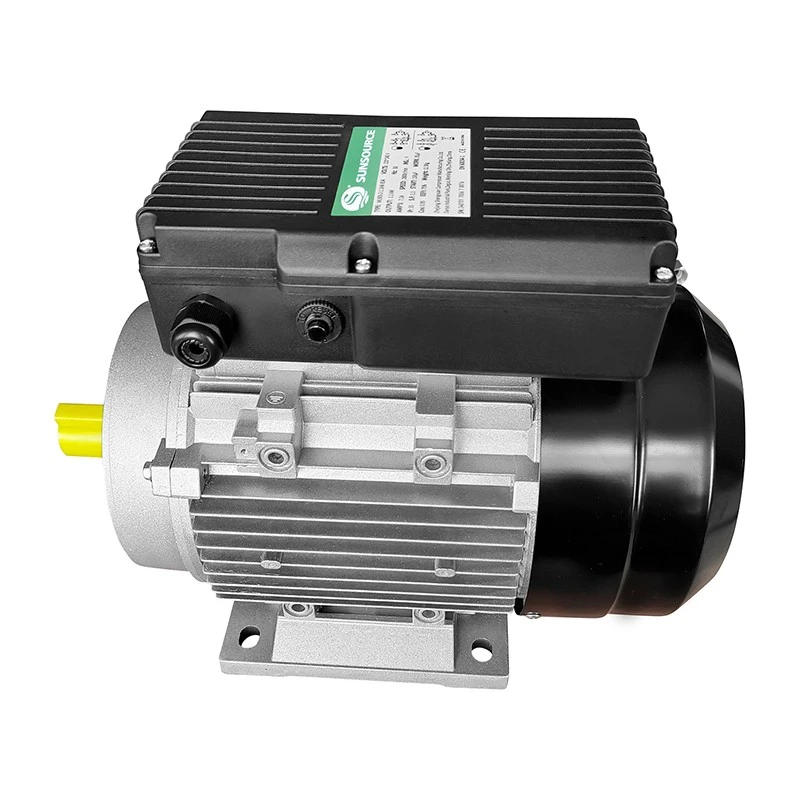

One Phase AC Motor is a practical choice for medium-power, high-starting-load applications, such as compressors, deep-well pumps, agricultural machinery, and industrial processing equipment. Its core advantage is achieving near three-phase motor startup performance with single-phase power, but regular maintenance of centrifugal switches and capacitors is essential.
One Phase AC Motor Key Selection Criteria
Strictly match load startup characteristics (e.g., inertia, resistance type).
Prioritize electronic switches over mechanical centrifugal switches for reliability. Enhance cooling and protection in high-temperature or dusty environments.
One Phase AC Motor Core Advantages
1. Ultra-Quiet & Energy Efficient
Precision Cast Aluminum Rotor: 99.7% pure aluminum low-pressure die casting, with fluid-optimized slot design reducing eddy current loss by 15% (tested per IEC 60034-2-1).
Dual Capacitor Synergy: Start capacitor (CD60) + Run capacitor (CBB61) with laser-welded copper terminals, achieving 92% energy conversion efficiency (IE1 standard).
Compact & Lightweight: Cold-rolled steel housing (wall tolerance ≤0.2mm) reduces weight by 12% vs conventional designs, ideal for wall/desk mounting.
2. Zero Maintenance Design
Monolithic Rotor Construction: Bars, end rings, and cooling fins cast as a single unit, eliminating joint failure risks.
TEFC Durability: CNC-machined sealing surfaces + fluorinated rubber O-rings (IP54 rated), 3x longer dust/water resistance.
3. Resilient Performance
Voltage range: 220V ±15% with 4-layer F-class insulated windings (82% slot fill rate).
Noise ≤55dB(A) at 1m (ISO 3744 certified).
4. Unified Manufacturing Excellence
Robotic Precision Assembly Stator: Self-locking laminations + automated winding (tension control ±2%). Rotor: Dynamic balancing to G2.5 (ISO 1940), vibration ≤2.8mm/s.
Rigorous Quality Validation 100% 72-hour load cycling test (0.8x-1.2x voltage). 3-year warranty on stator & bearings (failure rate <0.2% per year).
One Phase AC Motor Operation Conditions
(1) Ambient Temperature: -15℃≦θa≦40℃
(2) Rated Voltage: 220V AC
(3) Rated Frequency: 50Hz/60Hz
(4) Altitude: ≦1000m
Selection and Usage Guidelines
1. Capacitor specifications:
Starting capacitor: 200–250μF (rated ≥450V AC), supporting short-term high current.
Running capacitor: 40–50μF (rated ≥450V AC), metallized polypropylene (high-temperature resistance, long lifespan).
Note: Electrolytic capacitors (starting) require inspection/replacement every 2–3 years to prevent aging or leakage.
2. Start-stop management: Limit cycles to ≤10 times/hour to avoid centrifugal switch contact erosion or capacitor overheating. For frequent cycling, use electronic centrifugal switches or solid-state relays.
3. Cooling and protection: For continuous operation >20 minutes, select IP55-rated, fan-cooled motors (e.g., TEFC enclosures). In high-temperature environments (>35°C), add cooling fans or derate to 85% of rated power.
What is a 3-phase vs 1-phase AC motor?
A 3-phase AC motor and a 1-phase AC motor differ primarily in power supply, efficiency, and application scenarios.
1. Power Supply & Structure
3-phase motors use three alternating currents with 120° phase separation, creating a self-starting rotating magnetic field without auxiliary components.
1-phase motors rely on a single-phase supply (e.g., 220V) and require a capacitor or split-phase winding to generate a rotating field for startup.
2. Power & Efficiency
3-phase motors deliver higher power output (typically >1 HP) and efficiency due to balanced loads and continuous torque generation, making them ideal for industrial machinery and HVAC systems.
1-phase motors are limited to lower power (usually <1 HP) and less efficient due to uneven torque, suited for household appliances like fans or small pumps.
3. Applications
3-phase variants dominate heavy-duty applications (e.g., compressors, industrial pumps) for their reliability and energy efficiency.
1-phase motors are cost-effective for residential uses where three-phase power is unavailable.
Refer to electrical engineering resources for technical specifications (e.g., wiring methods like star/delta connections for 3-phase motors).
